Aeropolis II

2005 - 2010

Construction of an office building and plaza avenue Britsiers in Schaerbeek.
Streetview

Site
Avenue Urbain Britsiers, 5 1030 Brussels
Client
Groep Arco - KWB - KAV – KAJ
Structural engineering
Setesco
Services engineer
Cenergie - ingenieursbureau Stockman
Project Manager
Dexia
movie
http://www.labproject.be/1030/13.html http://www.archiurbain.be/?p=3765
copyrights
Marc Detiffe - Julie Willem
Contractor
Jacques Delens - Vanderstraeten
Surfaces
7 388 m² above ground level and 2 702 m² below ground level
Budget
11 500 000 € htva

Complete description

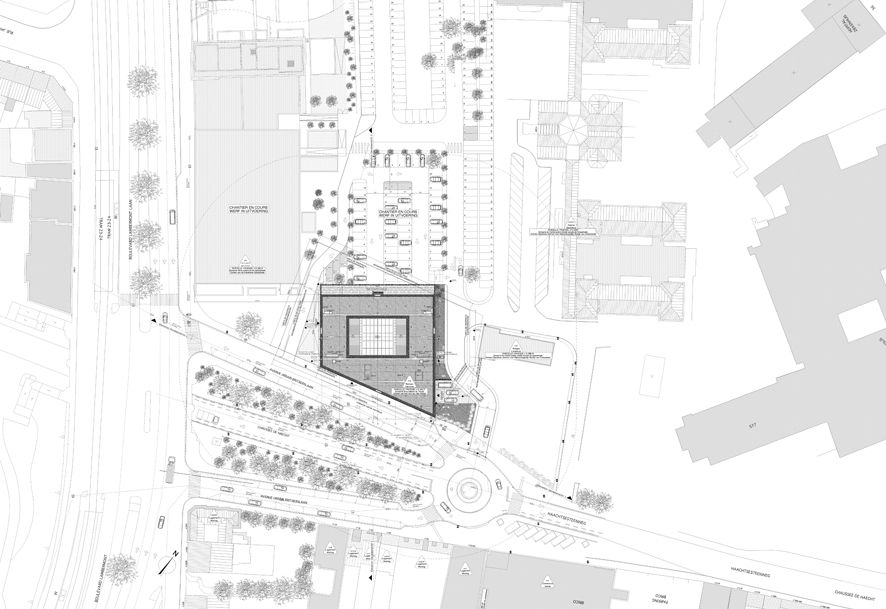

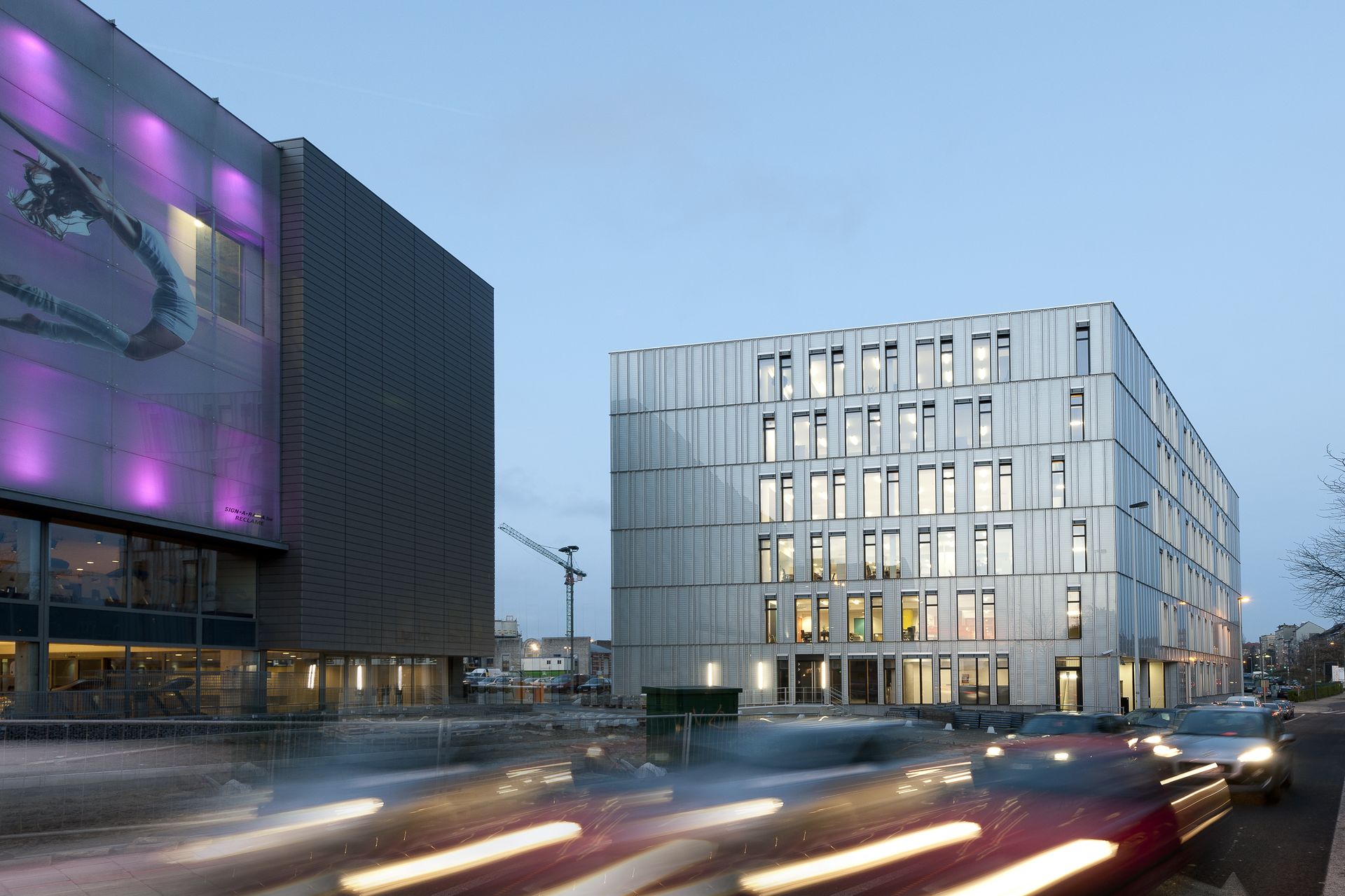

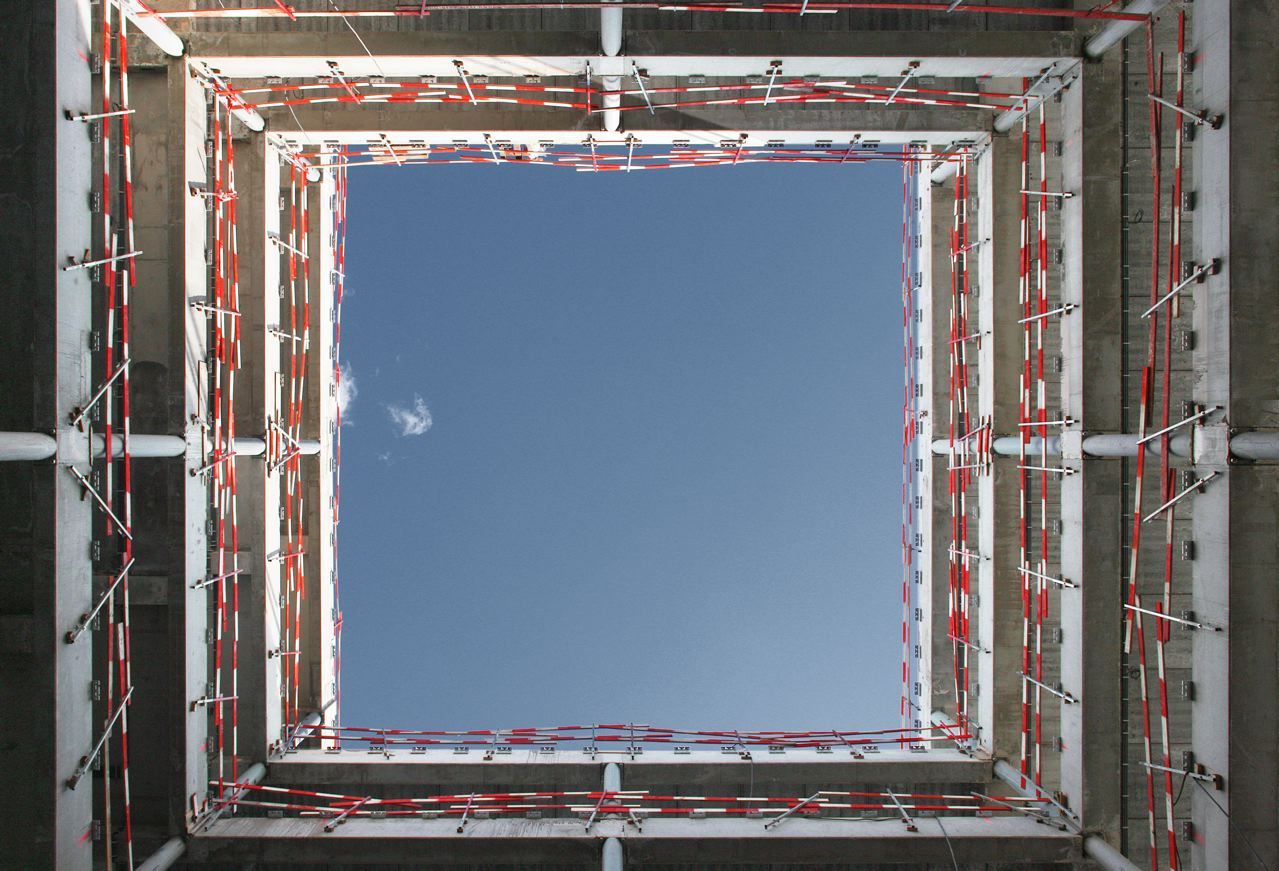

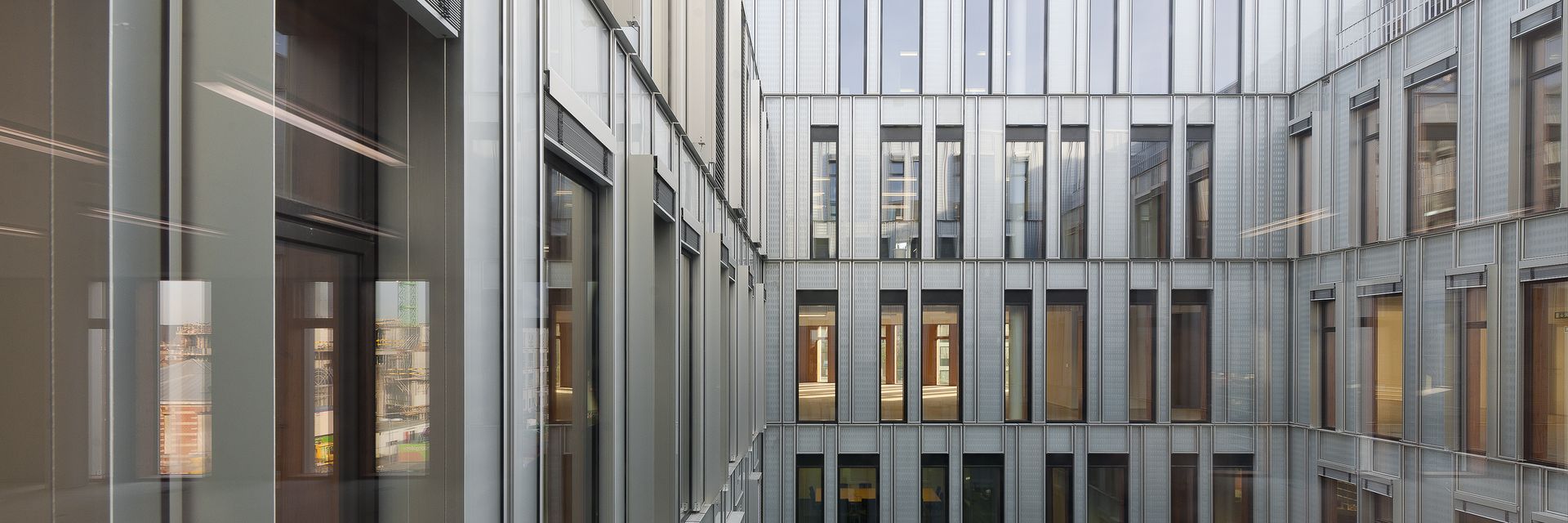

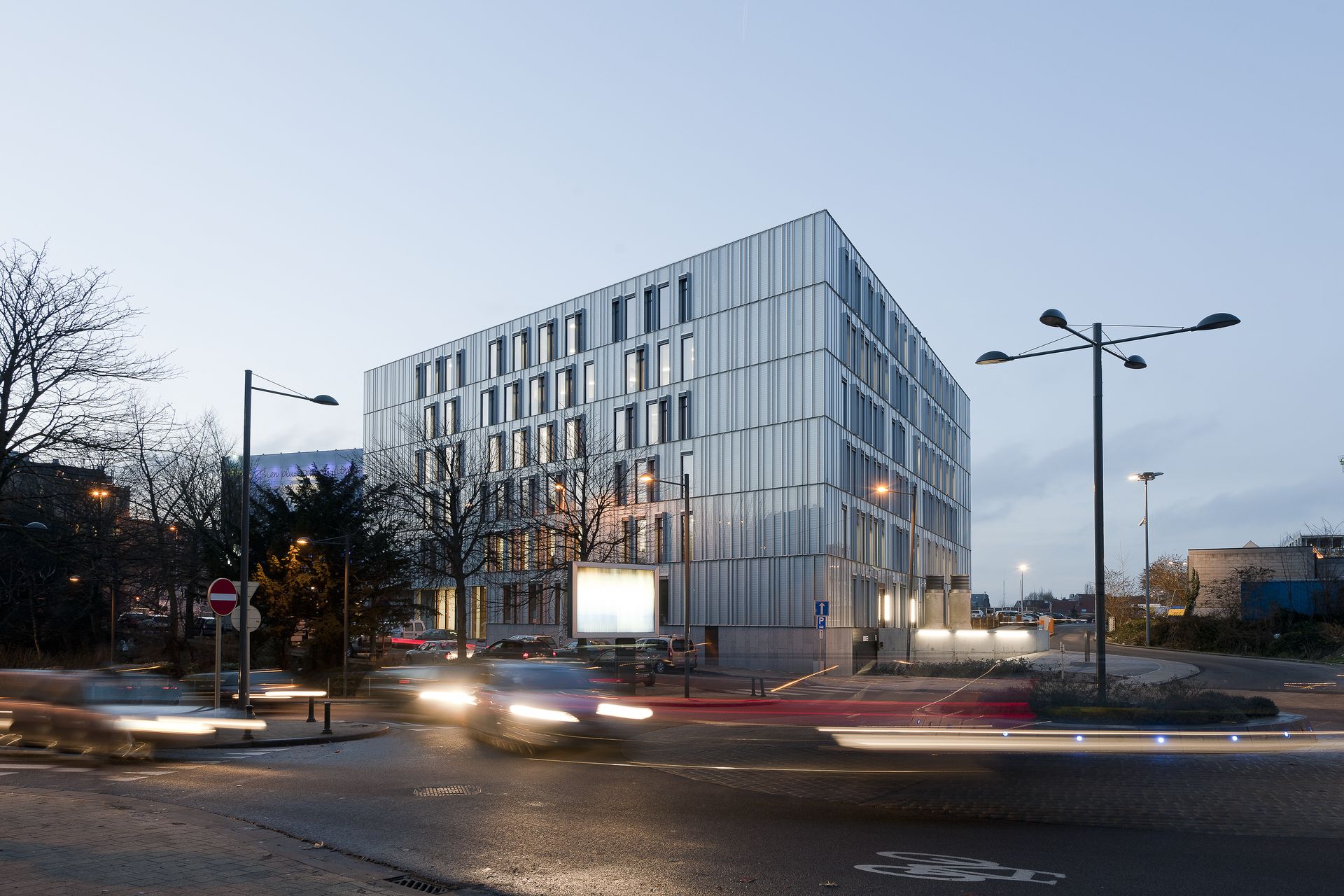

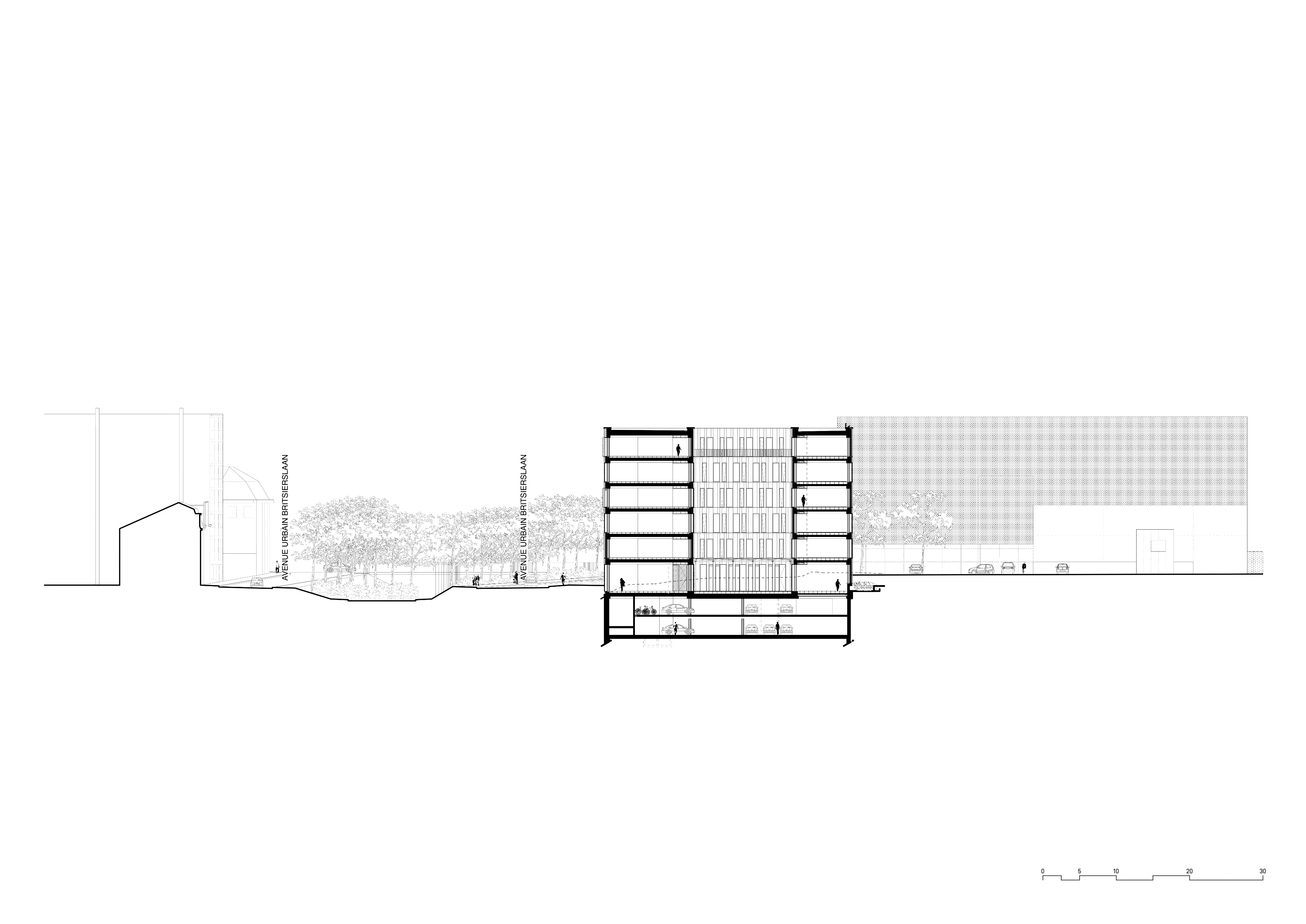

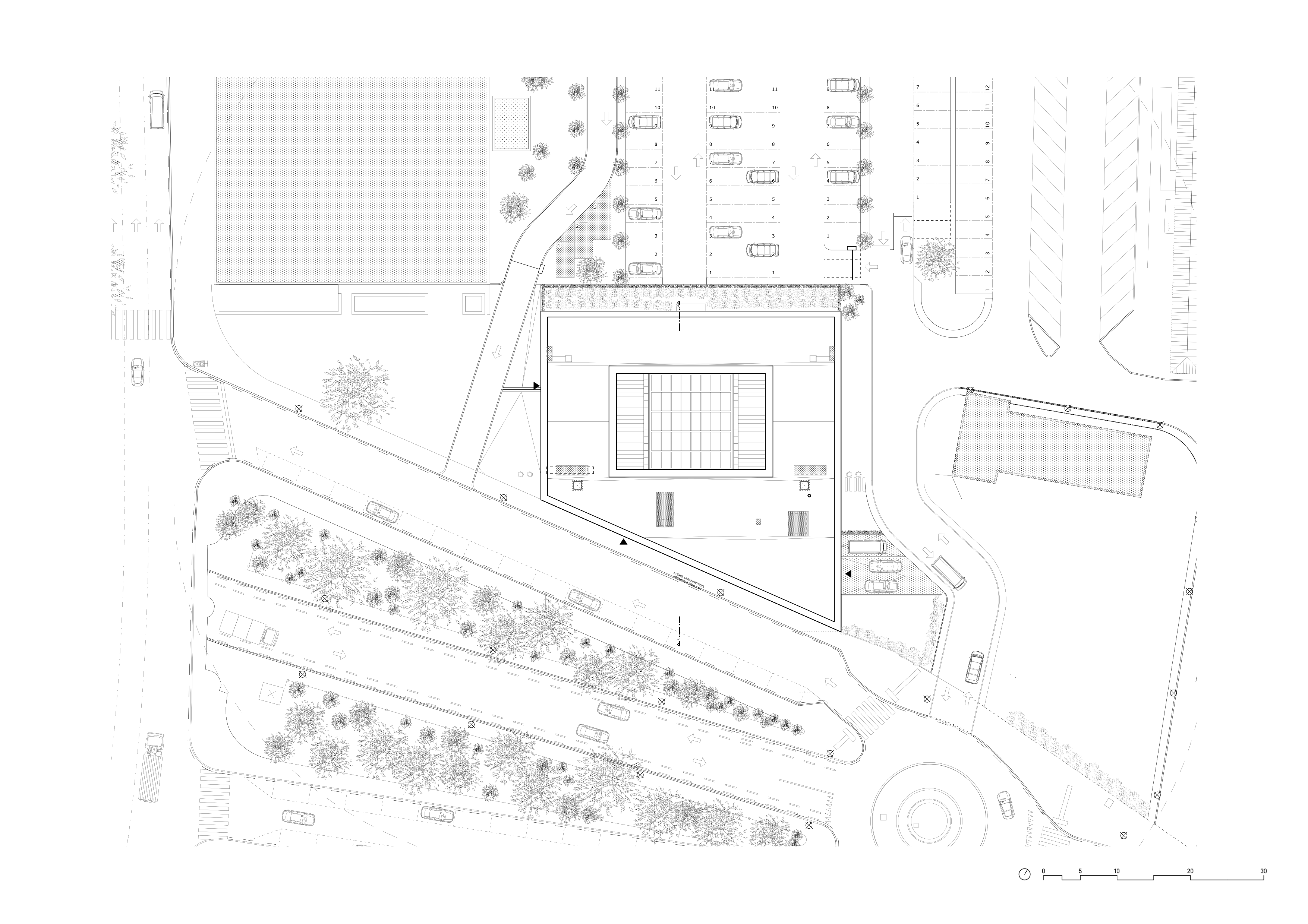

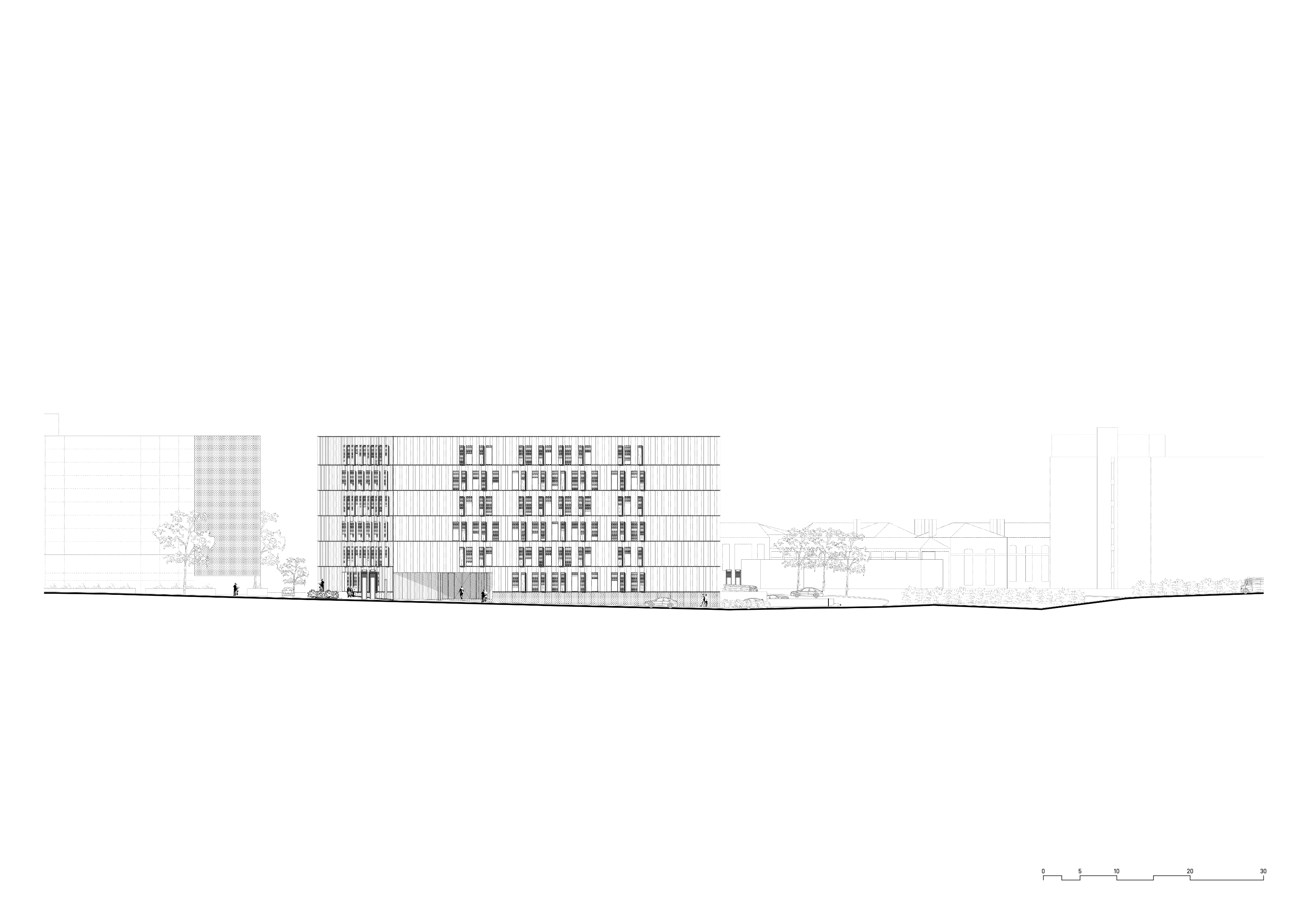

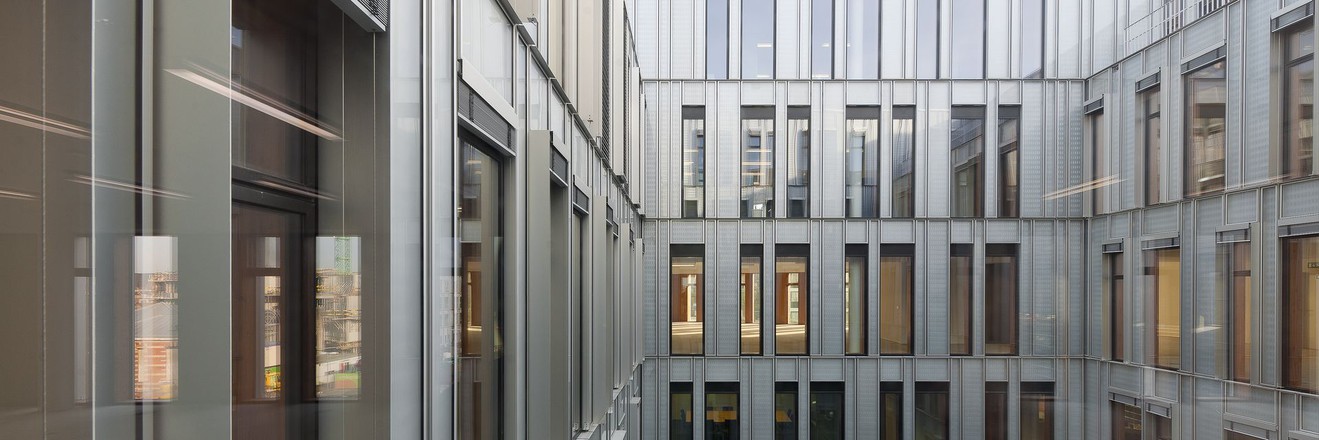

Aeropolis is an urban UFO. Its compact form sits square on street alignment south just to show it does belong there, discretely steps back west liberating a sunny plaza like a breather off the busy boulevard, and humbly aligns its cornice levels with the massive KINETIX next door. The resulting built form wraps itself around a federating patio ensuring optimal daylight entry for all occupants. So it is a respectful UFO.

Aeropolis is also an eco-ovni, being at design stage Europe’s largest passive office building, Belgium’s largest when finished. Environmental concerns were an integral part of the client brief at competition stage already, so from the onset priority was given to investments and construction principles reducing energy consumption and the use of non-renewable resources. Highly-effective thermal insulation and efficient natural (daytime) and forced (night) ventilations (without resorting to the use of « energy-squandering » cooling systems) help reach these goals.

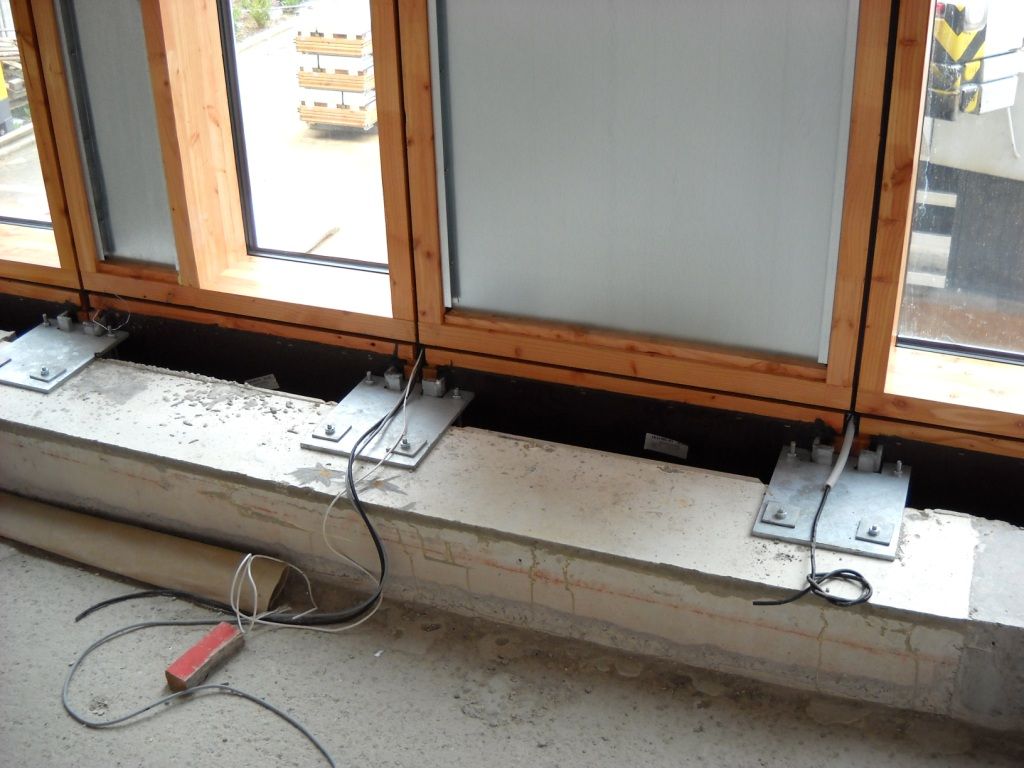

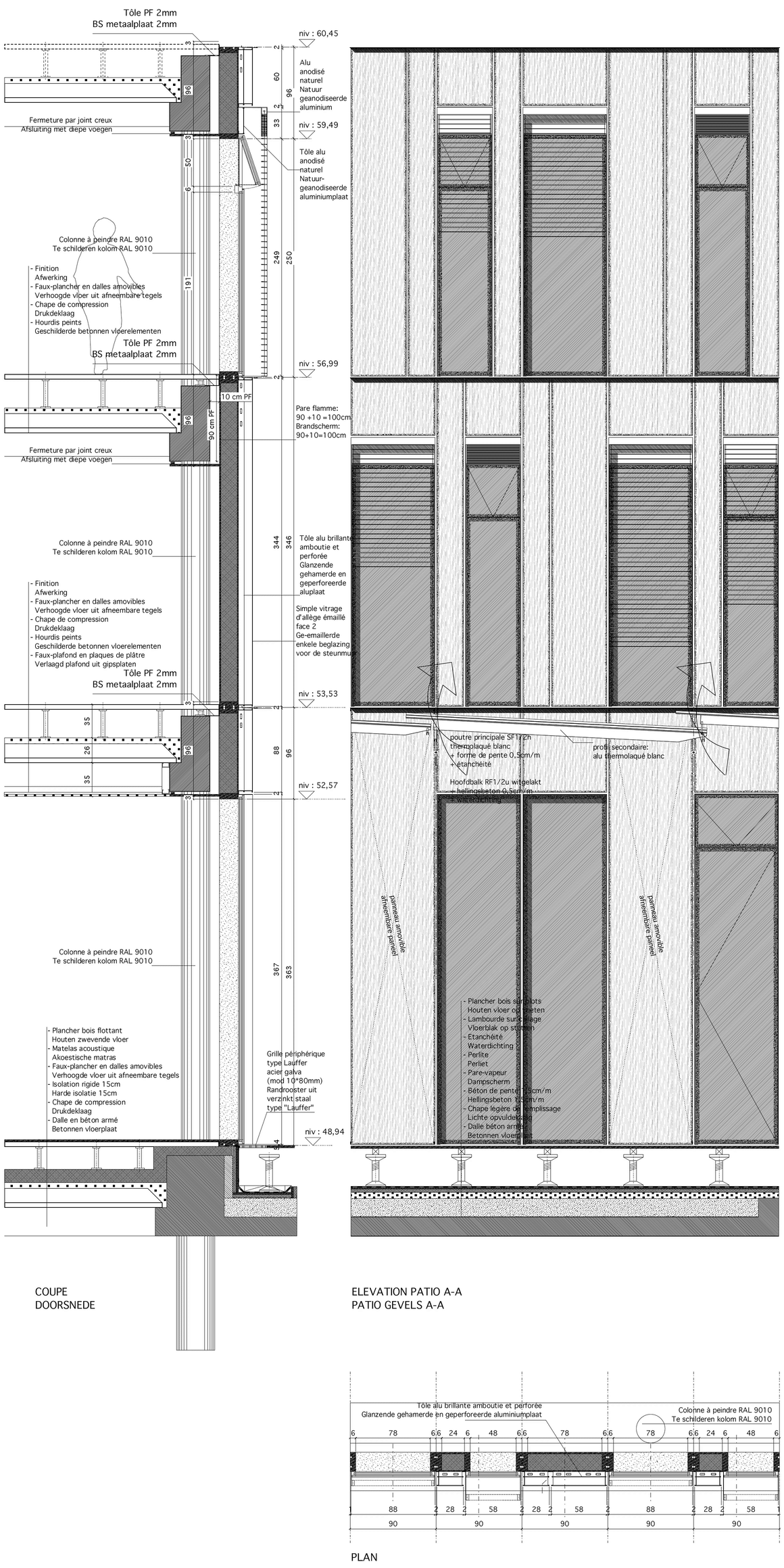

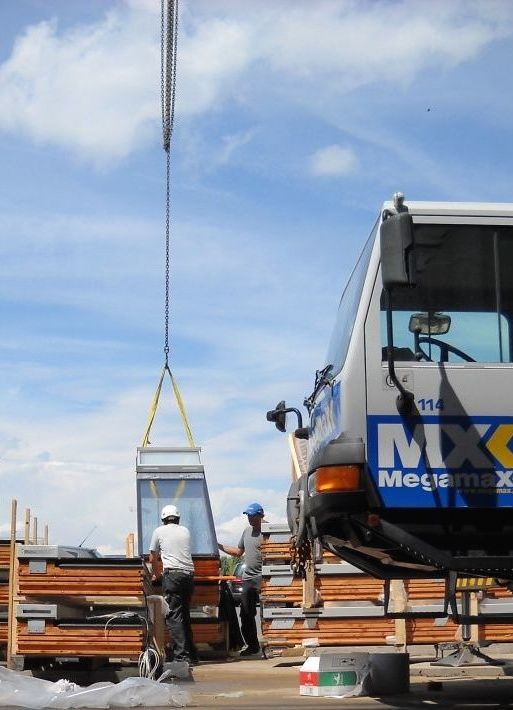

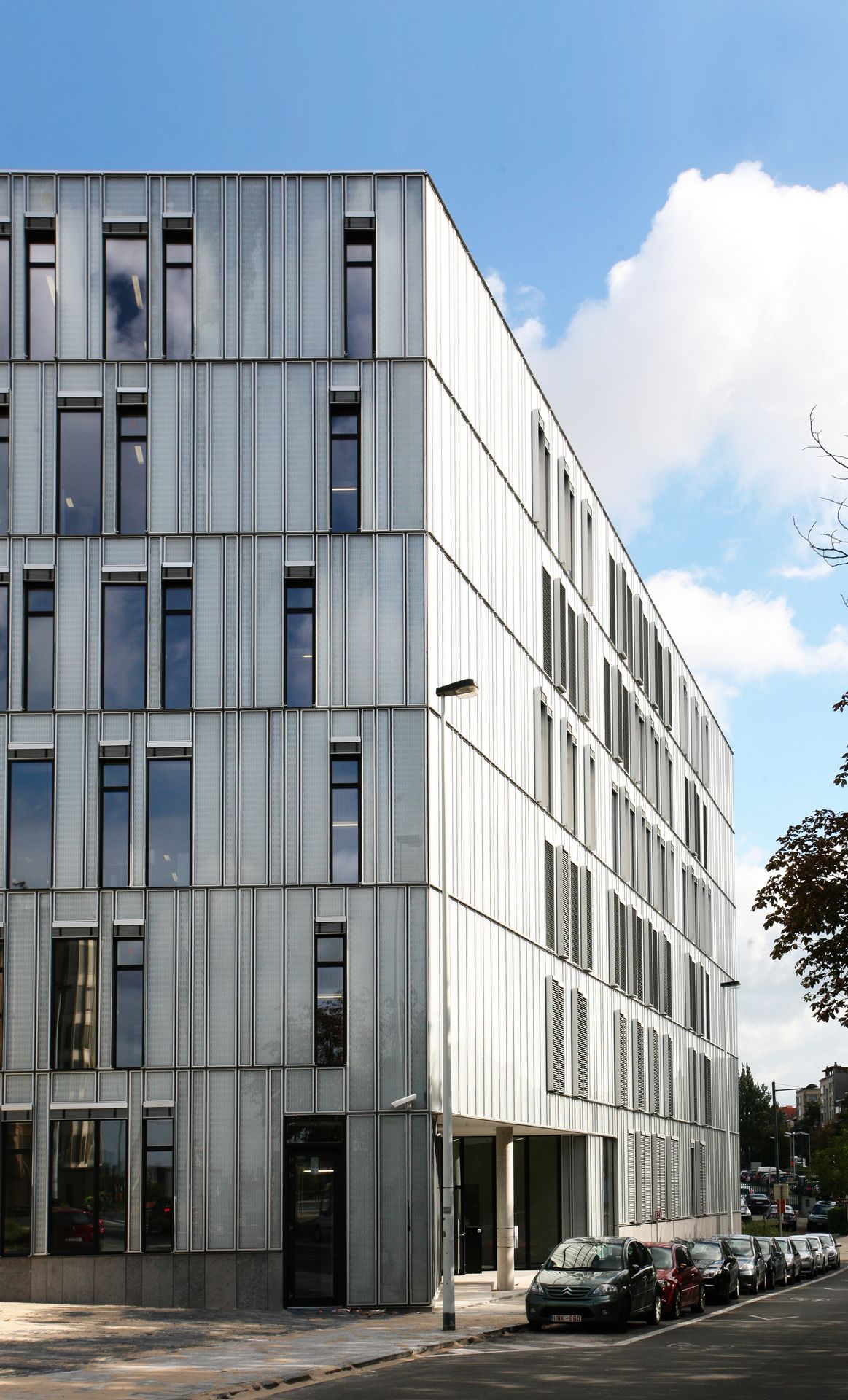

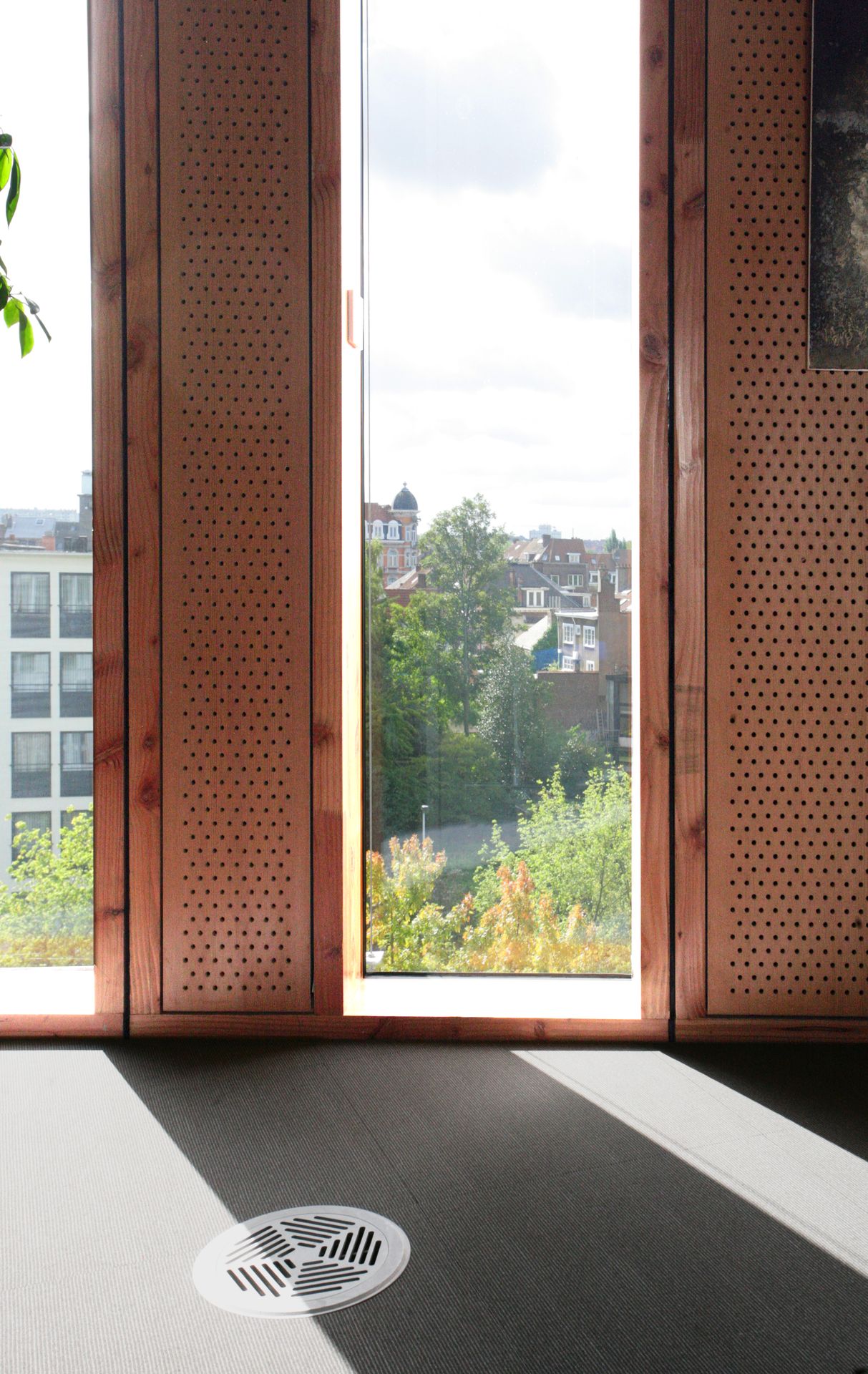

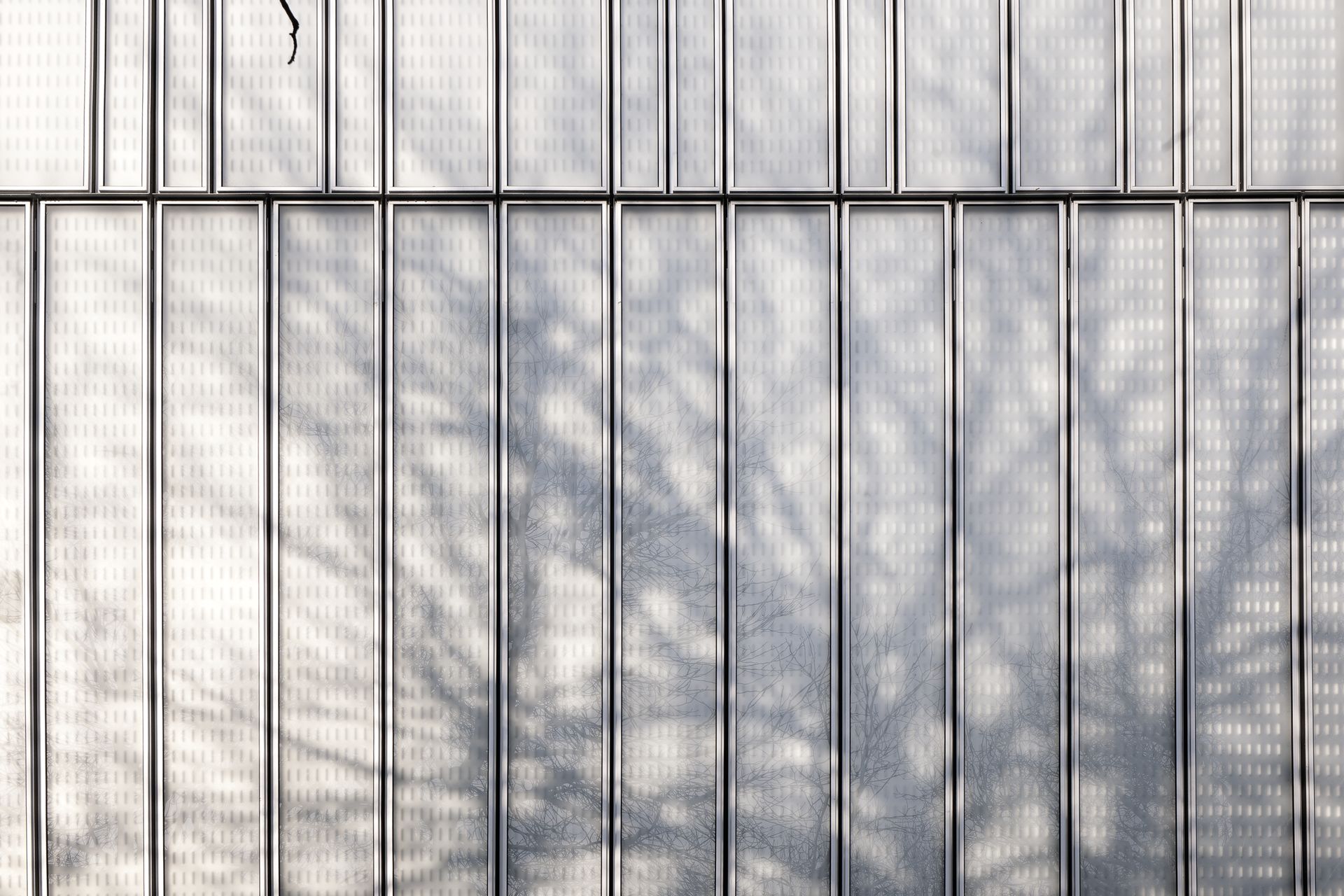

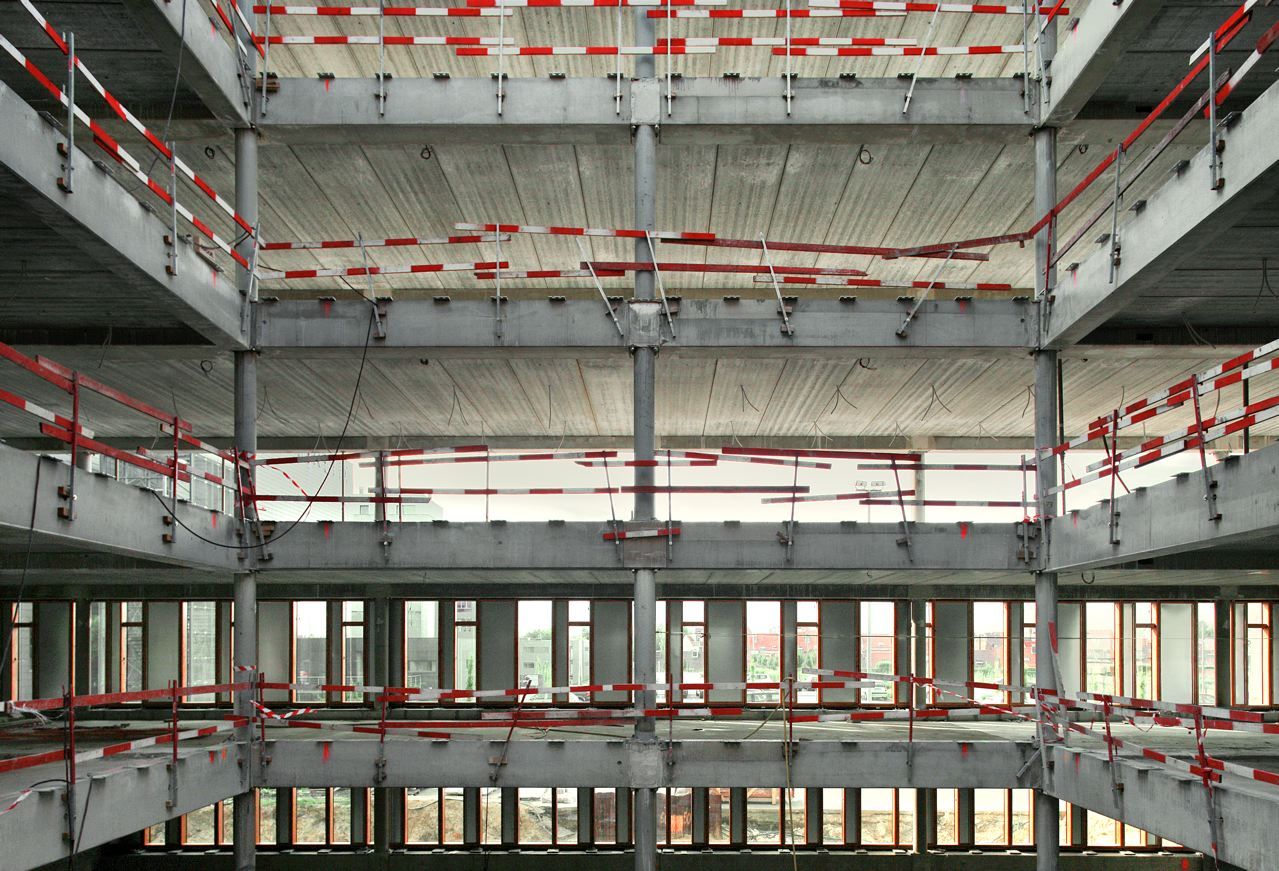

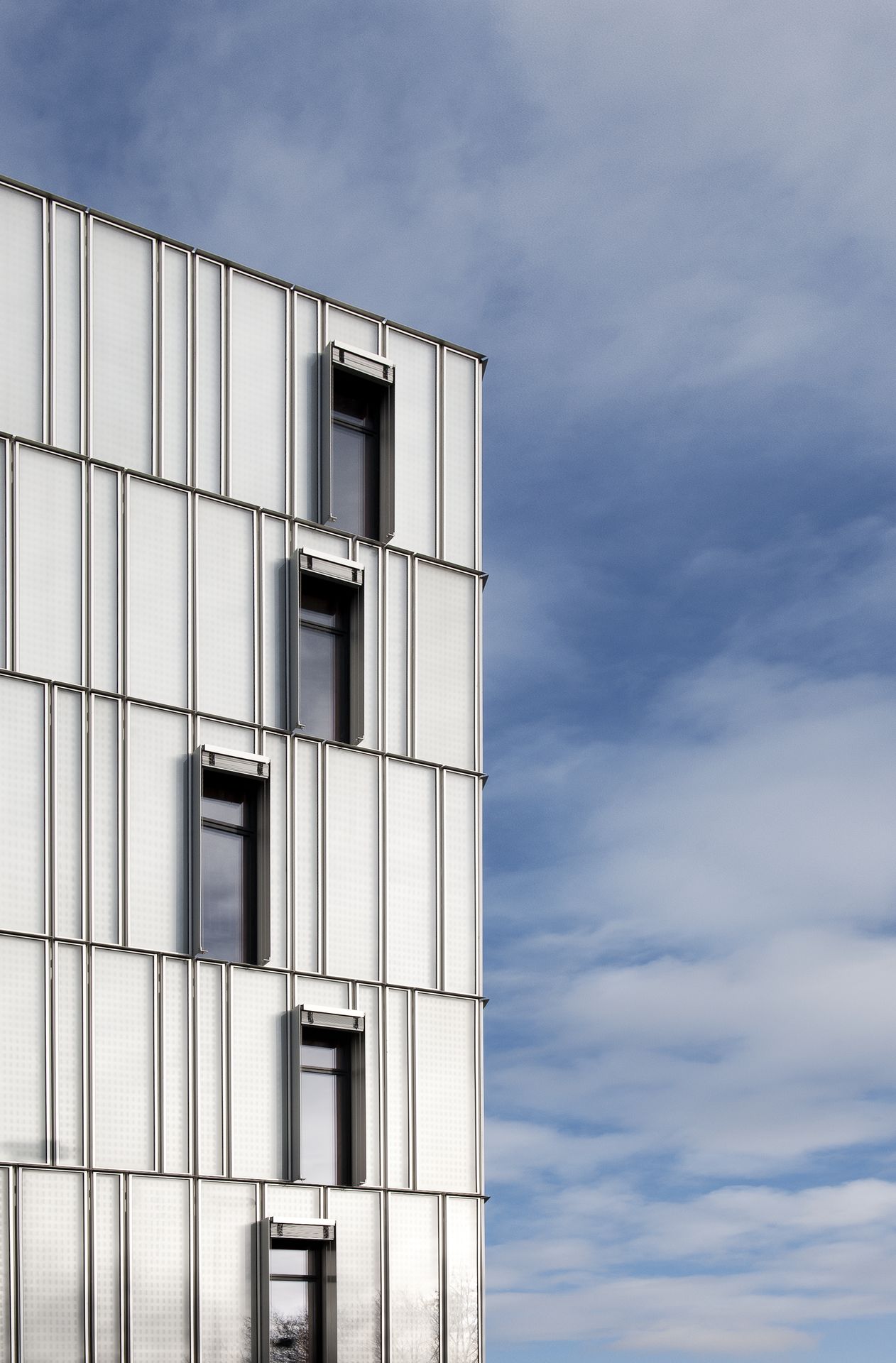

The compactness achieved limits façade surfaces, thus lowering thermal loss. The main load-bearing structure is bare pre-fabricated concrete, for its thermal inertia. Façade walls are composed of one-story high pre-fabricated timber frames of two types : opaque or glazed, of variable widths allowing them to be placed according to the varying organization of office spaces on each level … the resulting hopscotch of solids and gaps amplified by projecting volumes incorporating the automatically-opening ventilation frames.

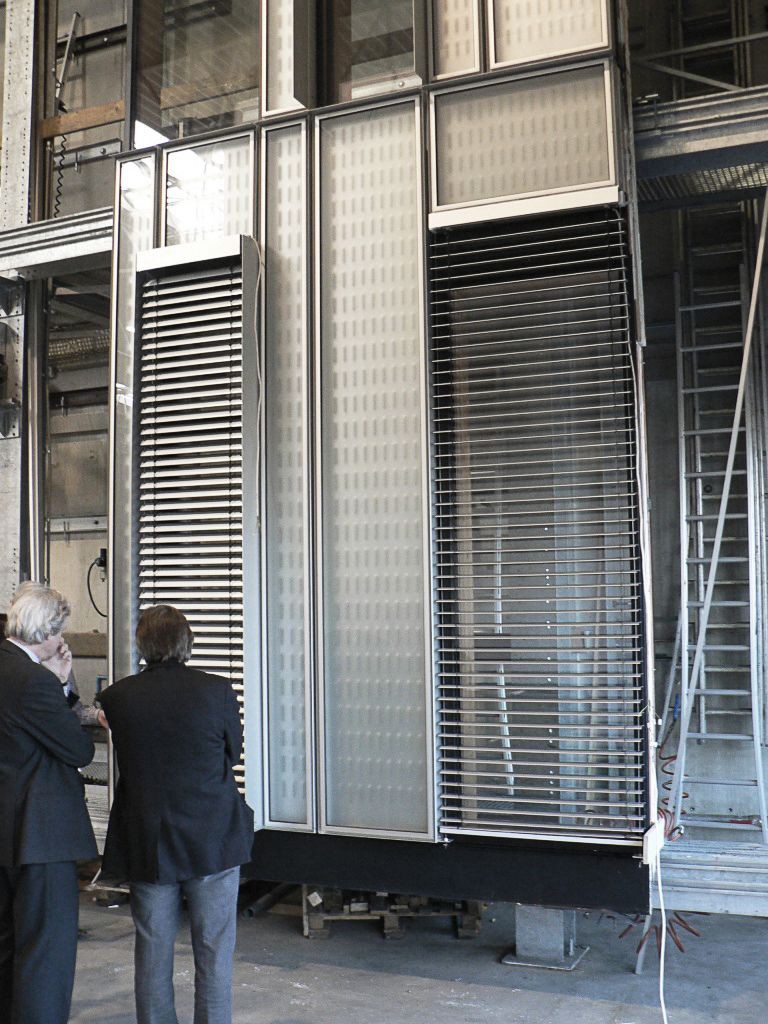

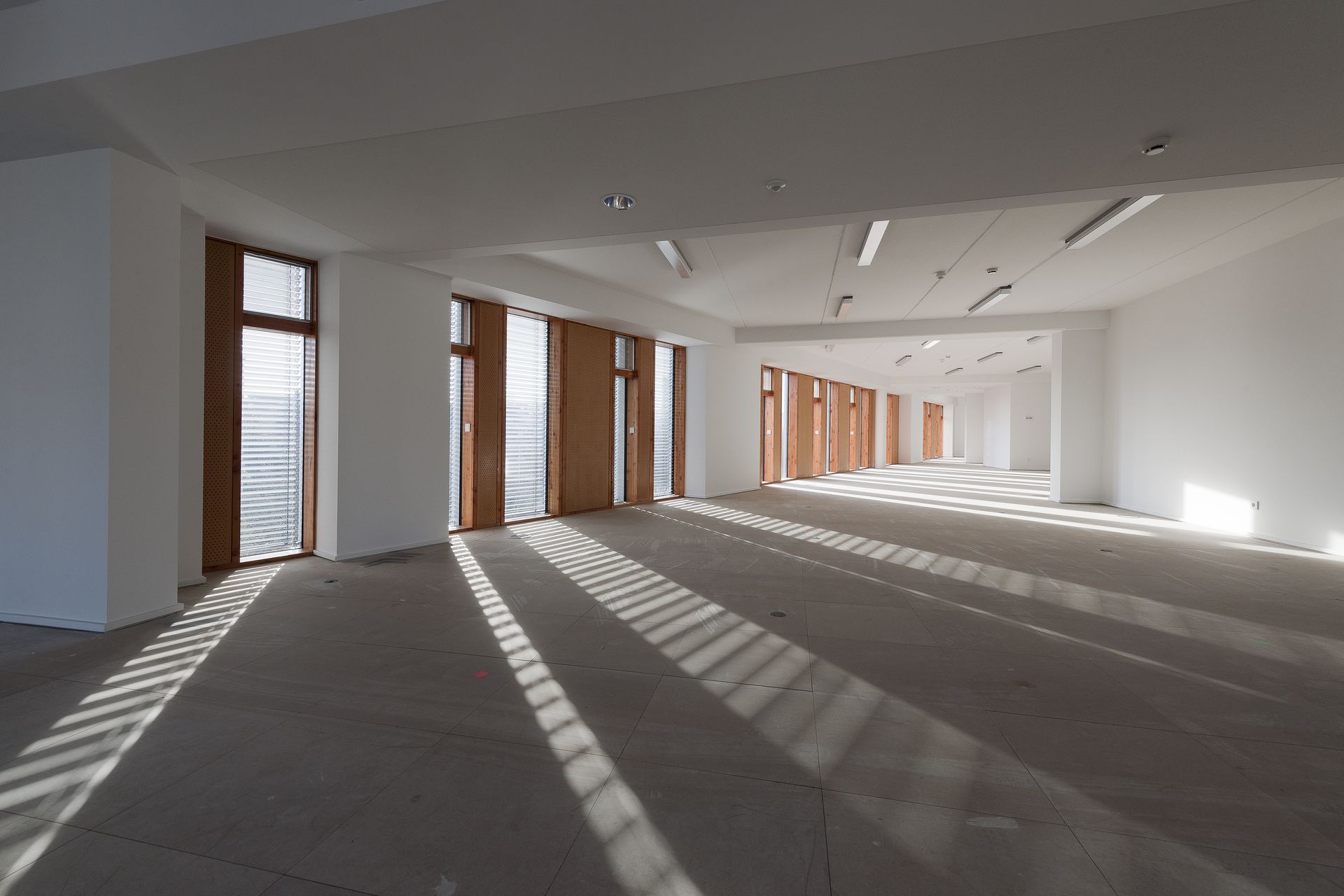

The reduction of window surfaces down to 42.5% for each standard office and down to 29% for total window surfaces adds to the significant reduction of heat loss in winter, and reduces heating during cold spells. Along with the exterior solar protection, it is critical in limiting cooling during warmer periods. These reductions in no way hinder the generous flow of natural light (22%), reducing even more drastically total energy consumption.
